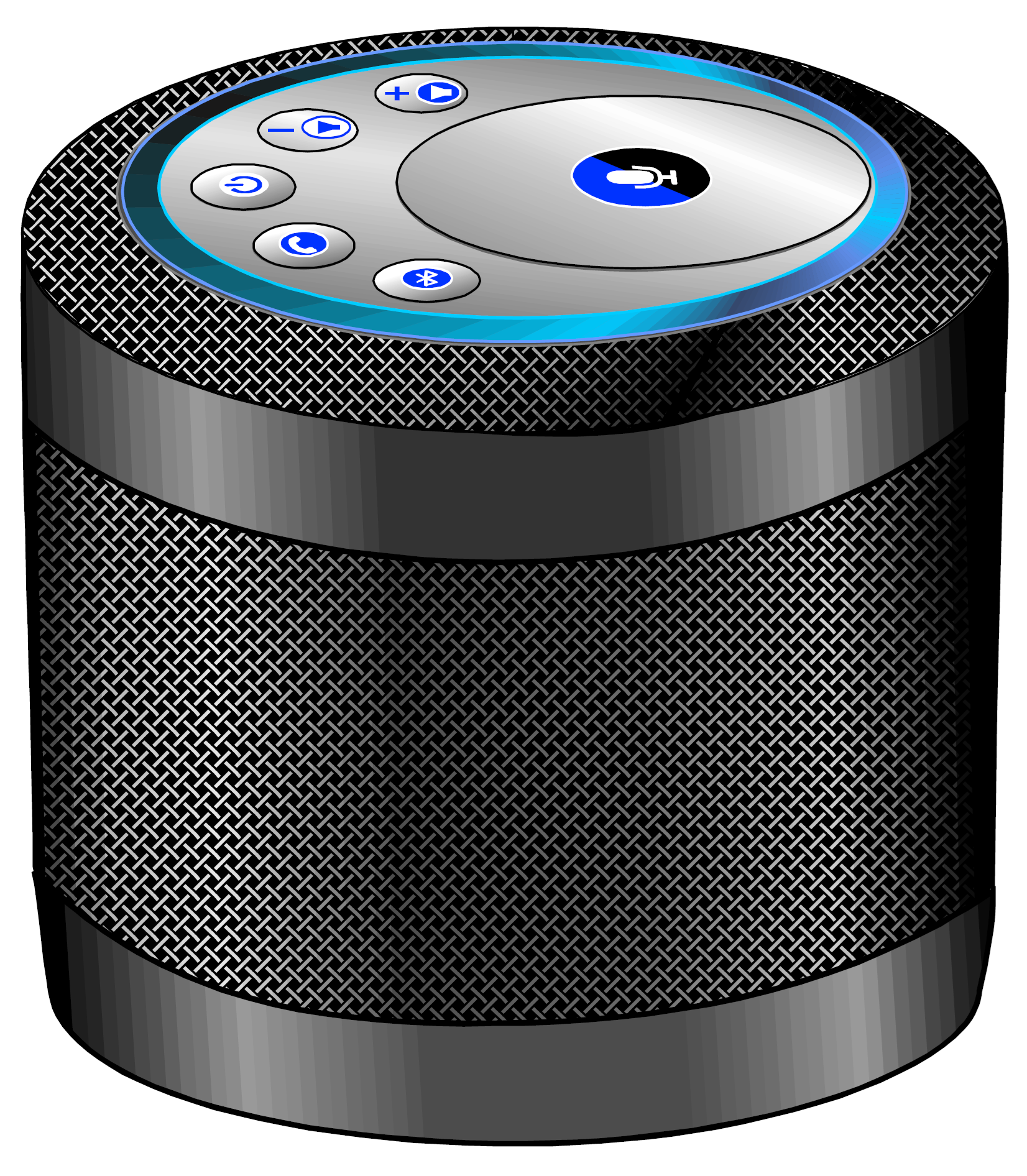

CAS150 Speakerphone

Technical Specifications

Speaker

• Frequency response: 80Hz~20KHz
• SNR: 72dB
• Maximum 20W
• Peak audio power: 88dB SPL@0.5M
• Active driver size: 2.5 inch
• Passive driver *2: For low frequency response

Microphones

• Beamforming mic array with four mics
• Frequency Response: 150Hz~14KHz
• Pick up range up to 2.5 meters

Additional Features

• Acoustic echo cancellation (AEC)
• Reverberation reduction
• Voic Level Normalization (Automatic Gain Control, AGC)
• Super-widebend (SWB)
• Noise reduction on calls

Bluetooth Connection

• BLE 5.3

Media Hub

• Input1

• USB type C alt DP up to 4K@60Hz + USB3.0
• Power charging 60W

• Input2

• HDMI 4K@30Hz + USB3.0 type C

• USB C DFP Port

• Alt DP output + USB3.0
• Paired with OWLink’s SC420 AI Camera

• Accessories Port

• USB3.0 type C
• USB3.0 type A

• Wireless Output

• HDMI Transmitter
• UVC Receiver
